JY-BMXDZD-A144294/A130500/B295395RG
Technical Data
| Product Specification | Remark | |||

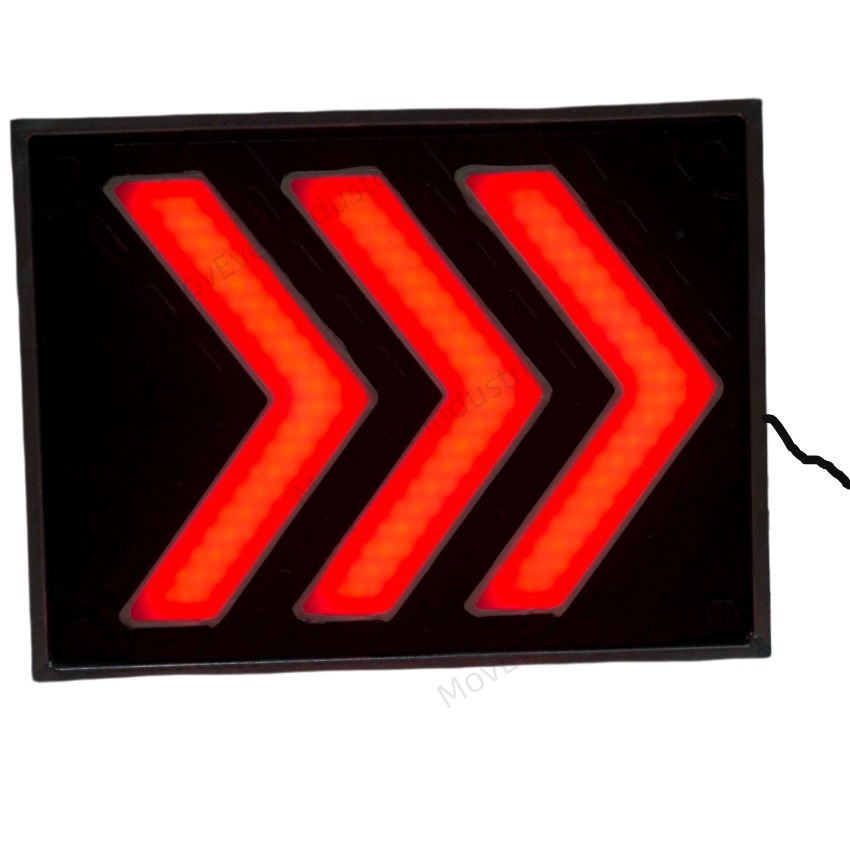

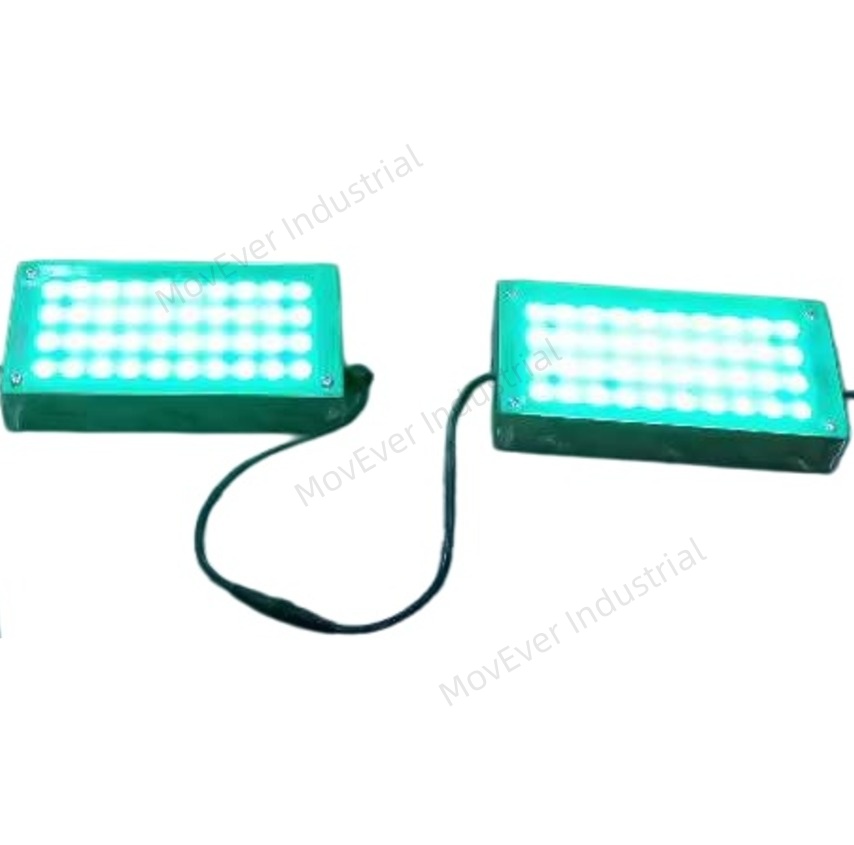

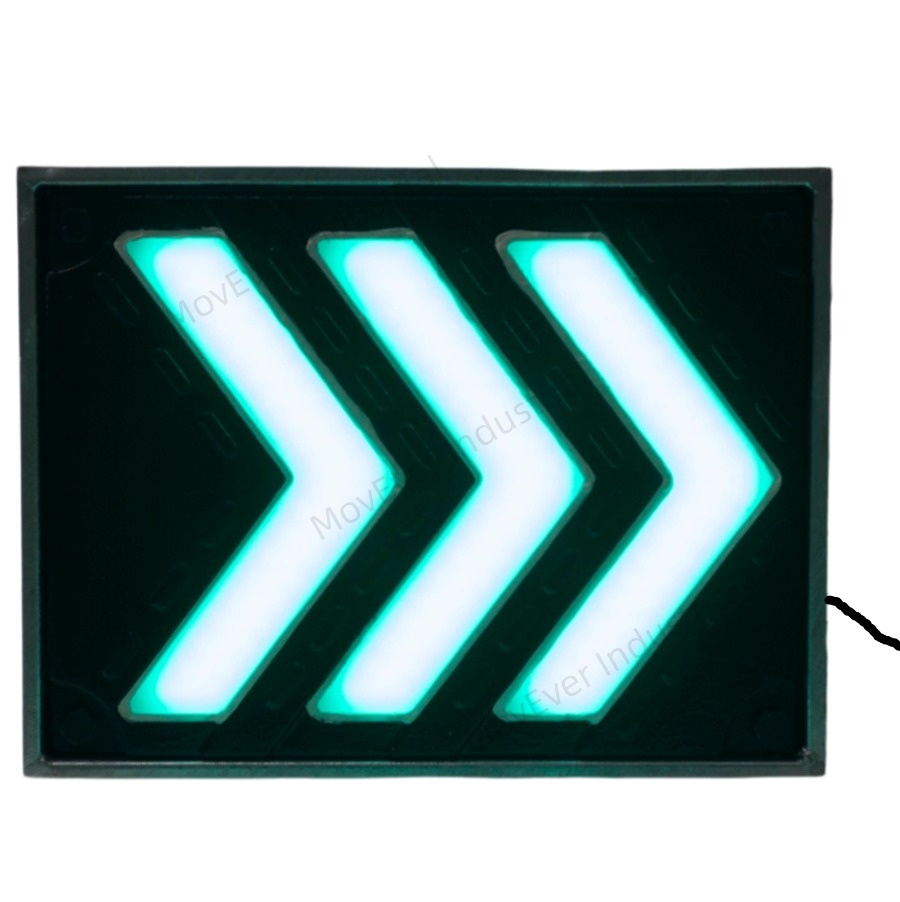

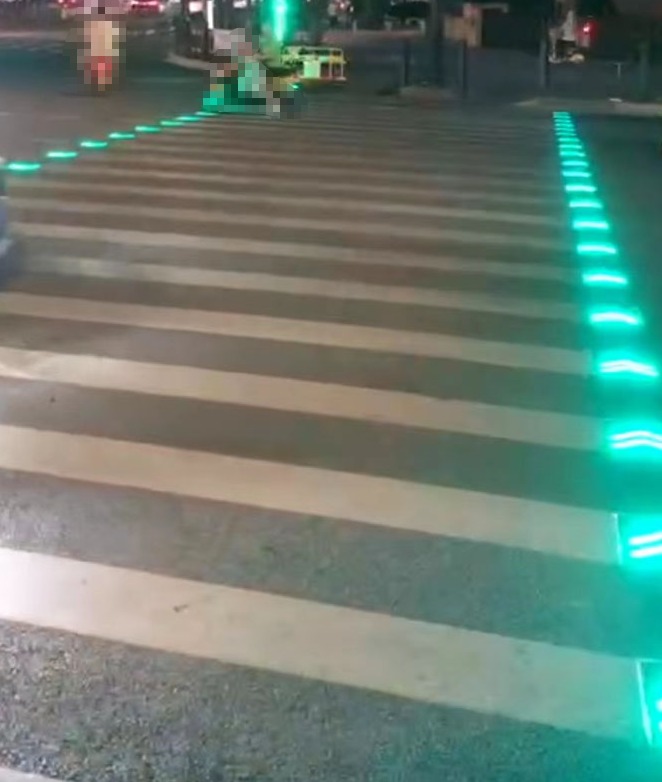

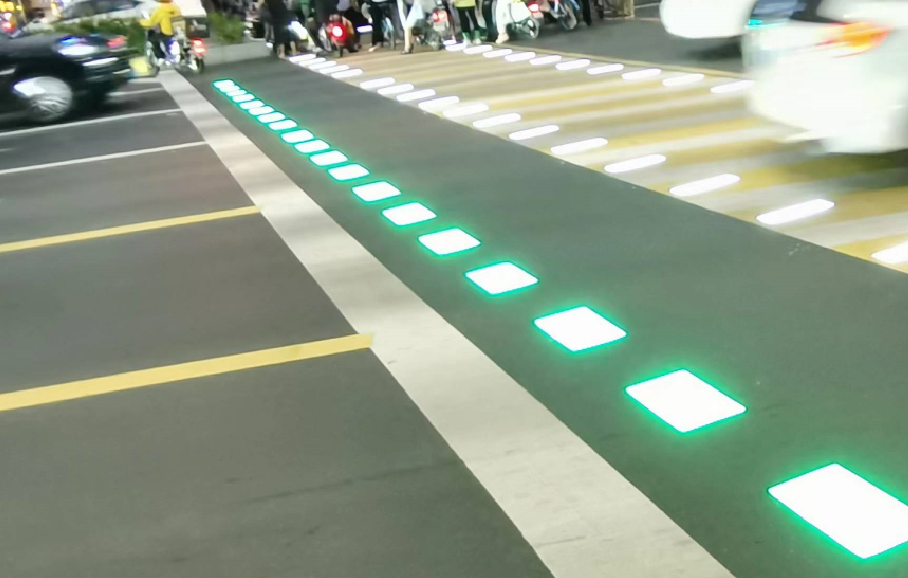

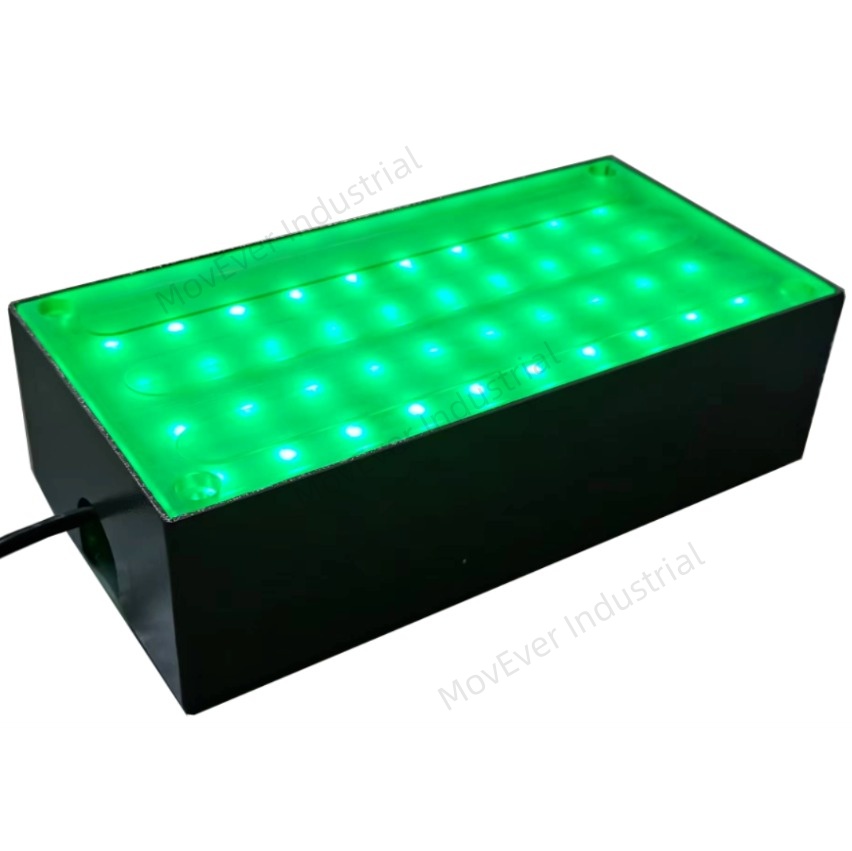

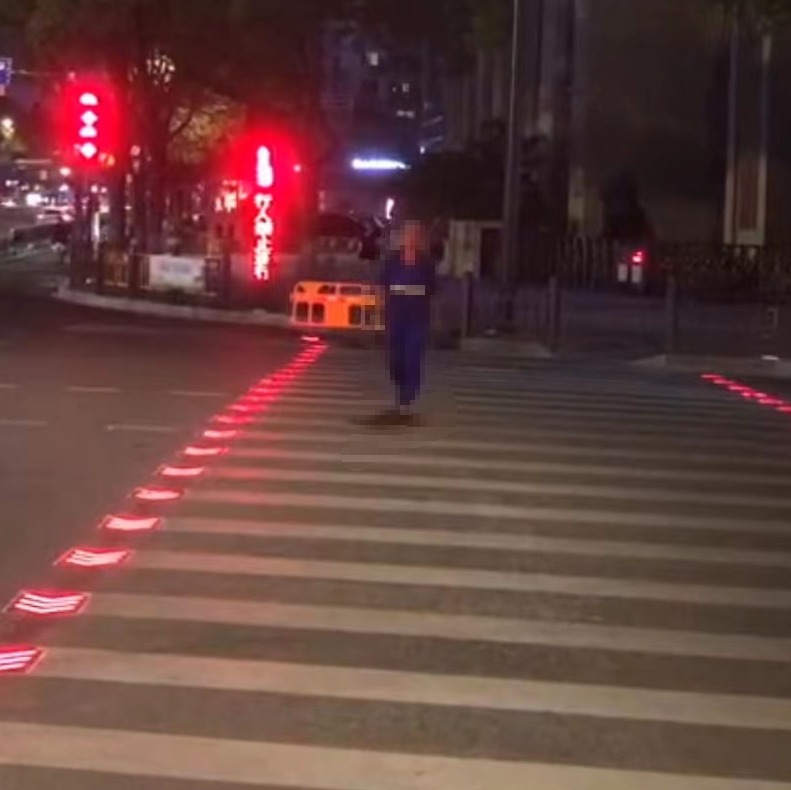

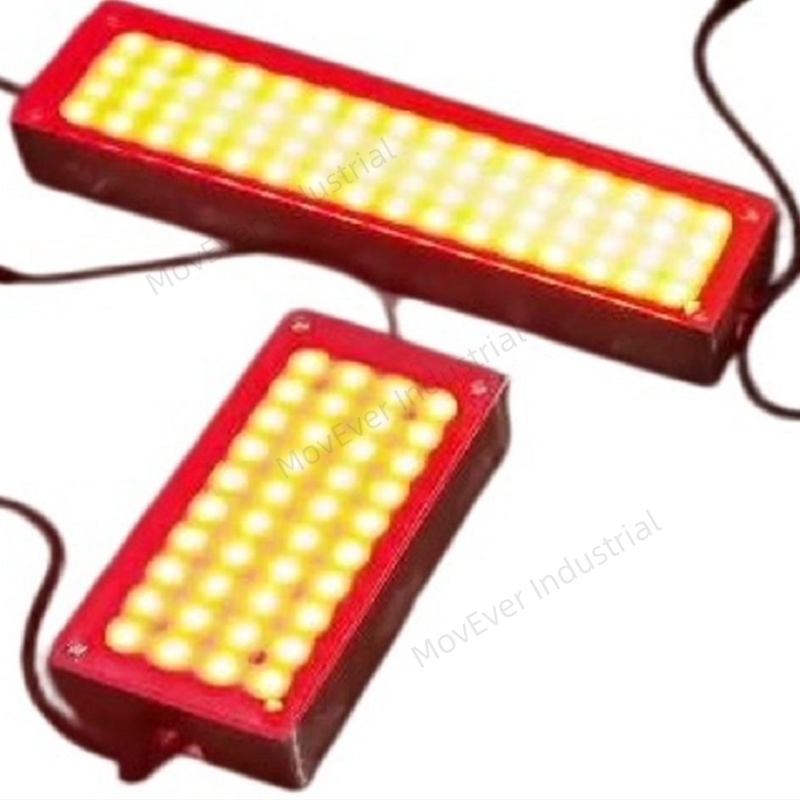

| Description | LED Roadway Underground Pedestrian Crossing Sign (Light) | |||
| Model Number | JY-BMXDZD-A144294/A130500/B295395RG | |||
| Product Dimensions | 144*294 mm (130*500 / 295*395 mm) | |||
| Metal Case Dimensions | 300*150*60/136*506*80/405*305*100mm | |||
| Voltage | DC 12/24V | |||
| Color | Red / Green （SMD LED) | |||
| LED QTY | 40/64/60 pcs | |||
| Outer Case Material | S.S & PC(plastic) / Cast Iron | |||
| Resist Compression | Up to 50 ton (statics) | |||
| Visible Distance | > 500 m | |||
| Control Mode | Via controller | |||
| N.W | 4.5/6/30kg | |||
| Ingress Protection | IP54 | |||
JY-BMXDZD-A144294/A130500/B295395RG.AC85-265V,work via controller.size...
Double side, aluminum alloy, solar road stud. 3 LED for each side o...
Solar flash light. JY-JSDG300L-Y/R
Solar power, crosswalk light using.600*600,800*800,or customized
